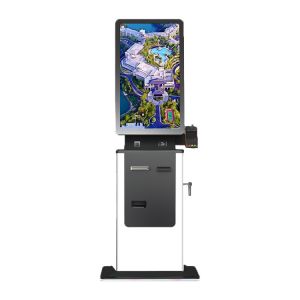

OEM/ODM Self Service Kiosk Machine Customize Functions Machine
Touch Bill Payment Printer Scanner NFC
Product Information:
Touch screen
POS machine
card reader
Receipt Printer
Id card reader
QR code scanner
Face recognition
monitoring
face registration
Pay card reader
A4 printer
Password
keyboard
LED light box
Components | Specification |
Computer | Industrial Mainboard: H81;
CPU: 3.2GHz, Intel Core i3
Memory: support Max 8GB 1600/1333MHz DDR3L/1.35V SDRAM;
SSD 250GB; RAM 4G;
Industrial computer cabinet with power supply;
Required ports (Serial, USB, VGA, DVI, etc.) to connect all the
devices;
Two 10/100 Mbps or higher Ethernet network cards with RJ45 ports;
(More sizes and types of PC available upon request) |
Monitor | TFT LCD : 15, 17 or 19 optional
Brightness: 300~1200nits
Contrast: 450:1~1000:1
Resolution:15 1024*768
17 1280*1024
19 1280*1024
More sizes between 20"~46" upon request |
Touchscreen | SAW Touch : 15 17 19"
Resolution : 4096*4096
(More types of touchscreen available: capacitive, resistive or IR
optional) |
Input Device | 3DES Metal EPP : 16 keys, waterproof, dustproof, vandal proof |
Cash Acceptance Module | • Four way acceptable;
• Numerous interface are available;
• Validation rate of 98% or greater;
• Easy to installation and maintenance;
• Approximately three seconds to stack;
• Rarely jams as bank note is always controlled;
• Cashbox capacity: 2000 notes, or customized, with safty case for
protecting the cassette; |
Speaker | Multimedia : Left-right bi-channel amplified output |
Enclosure | ColdRoll Steel : Steel powdercoated front
Powercoated backcover |
OS&Drivers | Windows XP+SP2 (WINCE, Linux, Unix, WIN2000) and all related
drivers available |
Packing | Bubble Foam, carton, wooden case |
Other Optionals : UPS, Video Camera, Alarm System, Barcode
Scanner,Track Ball, Photo Printer, Cash Acceptor, Card Dispenser,
Check Acceptor, Infrared, Bluetooth, PSAM Card, etc. |
Product features:
INDUSTRIAL MOTHERBOARD
Equipped with industrial-gr ade all-in-one motherboard,
Stable and smooth operation, strong anti-int erference ability.
INDUS TRIAL HD SCREEN
Using LED backlight technology combined with industrial A screen,
The picture has brighter colors and longer service life.
Digital audio speaker,Clear transmissioninformation.
Fast Printing,More Convenient Checkout
Built-in 80mm thermal printer,
automatic cutting machine.
Printer paper's wide is supported 57 5+0.5,
69.5+0.5,76+0.5, 79.5+0.5 ,82. 5+0.5mm.
Product Advantages:
Suction card reader pay card payment,National secret chip
processing,information security is guaranteed.
Atmosphere lamp beautiful and charming
Convenient to operate the machine at night
Application:
Restaurant chains, supermarkets, kitchen,displays,
convenience stores, clothingstores, bakeries, hotels, offices, etc.
